Files Status Updates

We will be introducing new statuses and status details to improve your product experience by improving the clarity of our statuses.

Reason for the change

Our mission is to make high resolution energy data easily accessible to you. One of the ways we have been doing that is taking in files that are utility bills and converting them into data you can access via our API or Console. While doing this, a common piece of feedback we have been getting from you is that our current file statuses and status details (the File.fileStatus and File.fileDetails fields) are not informative enough for you to action upon what we tell you. We highly appreciate your feedback and in order to improve both clarity and transparency of our files processing pipeline, we will be making some updates to how we communicate our processing status of your files.

Change date

To be determined.

We are in the process of reaching out to you to share with you the details of this change and work with you to come up with a release date collaboratively in order to minimize the impact of this change to your systems. As soon as we have a release date, we will share it publicly here.

Before the change

Statuses

We use the File.fileStatus field to indicate the status of the file. This is a required field. This field will always be populated by Arcadia. The possible values are:

  • PENDING
  • SUCCESS
  • FAILURE

Status details

We use the File.fileDetails field to indicate the status detail of the file. This is an optional field. This will not always be populated by Arcadia. The possible values are:

  • New
  • In Progress
  • Provider Not Supported
  • Unsupported Provider
  • Under Review
  • Input File Corrupted
  • Unsupported Bill Format
  • Unsupported Language
  • File Processing Timed Out

All posible status transitions

  • PENDINGSUCCESS
  • PENDINGFAILURE

Webhooks behavior

When a file is uploaded and when the status of a file transitions, we will send a webhook with event type STATUS_CHANGE and subject type FILE. More details on webhook behaviors here.

After the change

Statuses

We will continue to use the File.fileStatus field to indicate the status of the file. This field will continue to be a required field. This field will always be populated by Arcadia. The new possible values are:

  • QUEUED
  • REJECTED
  • IN_PROGRESS
  • COVERAGE_REQUEST
  • SUCCESS

Status details

We will continue to use the File.fileDetails field to indicate the status detail of the file. This will now be a required field. This filed will always be populated by Arcadia. We will return as many reasons as we think applicable to the bill. The new possible values are:

  • READY_FOR_PROCESSING
  • PROVIDER_UNIDENTIFIABLE
  • SERVICE_TYPE_NOT_SUPPORTED
  • LANGUAGE_NOT_SUPPORTED
  • REQUIRED_DATA_FIELDS_MISSING
  • BILL_INSUFFICIENTLY_LEGIBLE
  • TIME_OUT
  • IDENTIFYING_PROVIDER
  • BILL_ANOMALY_FLAGGED
  • DATA_EXTRACTION_FAILURE_INVESTIGATION_STARTED
  • DATA_AUDIT_FAILURE_INVESTIGATION_STARTED
  • REQUEST_CREATED
  • IN_PROGRESS
  • DATA_EXTRACTION_SUCCESSFUL

Status and status detail definitions

File.fileStatusFile.fileDetailsCustomer-facing definition
QUEUEDREADY_FOR_PROCESSINGArcadia has started processing the bill.
REJECTEDPROVIDER_UNIDENTIFIABLEArcadia is not able to obtain the provider name from the bill.
SERVICE_TYPE_NOT_SUPPORTEDArcadia does not currently support the service type of the bill.
LANGUAGE_NOT_SUPPORTEDArcadia does not currently support the language of the bill.
REQUIRED_DATA_FIELDS_MISSINGArcadia is not able to obtain one or more required fields from the bill.
BILL_INSUFFICIENTLY_LEGIBLEArcadia is not able to read the necessary details of the content or structure of the bill.
TIMED_OUTArcadia was not able to process the bill within 2 weeks, therefore the bill is timed out.
IN_PROGRESSIDENTIFYING_PROVIDERArcadia was not able to automatically detect the provider. Our staff will try to identify the provider name from the bill.
BILL_ANOMALY_FLAGGEDArcadia has identified some anomalies on the bill and has started reviewing the bill to ensure accurate data extraction.
DATA_EXTRACTION_FAILURE_INVESTIGATION_STARTEDThe bill has failed automated data extraction. The bill will be reviewed for further processing.
DATA_AUDIT_FAILURE_INVESTIGATION_STARTEDThe bill has failed automated data quality audits. The bill will be reviewed for further processing.
COVERAGE_REQUESTREQUEST_CREATEDArcadia will develop an automated way to extract data from the bill.
IN_PROGRESSArcadia has started the development process for automating data extraction for the bill.
SUCCESSDATA_EXTRACTION_SUCCESSFULArcadia was able to extract data from the bill submitted

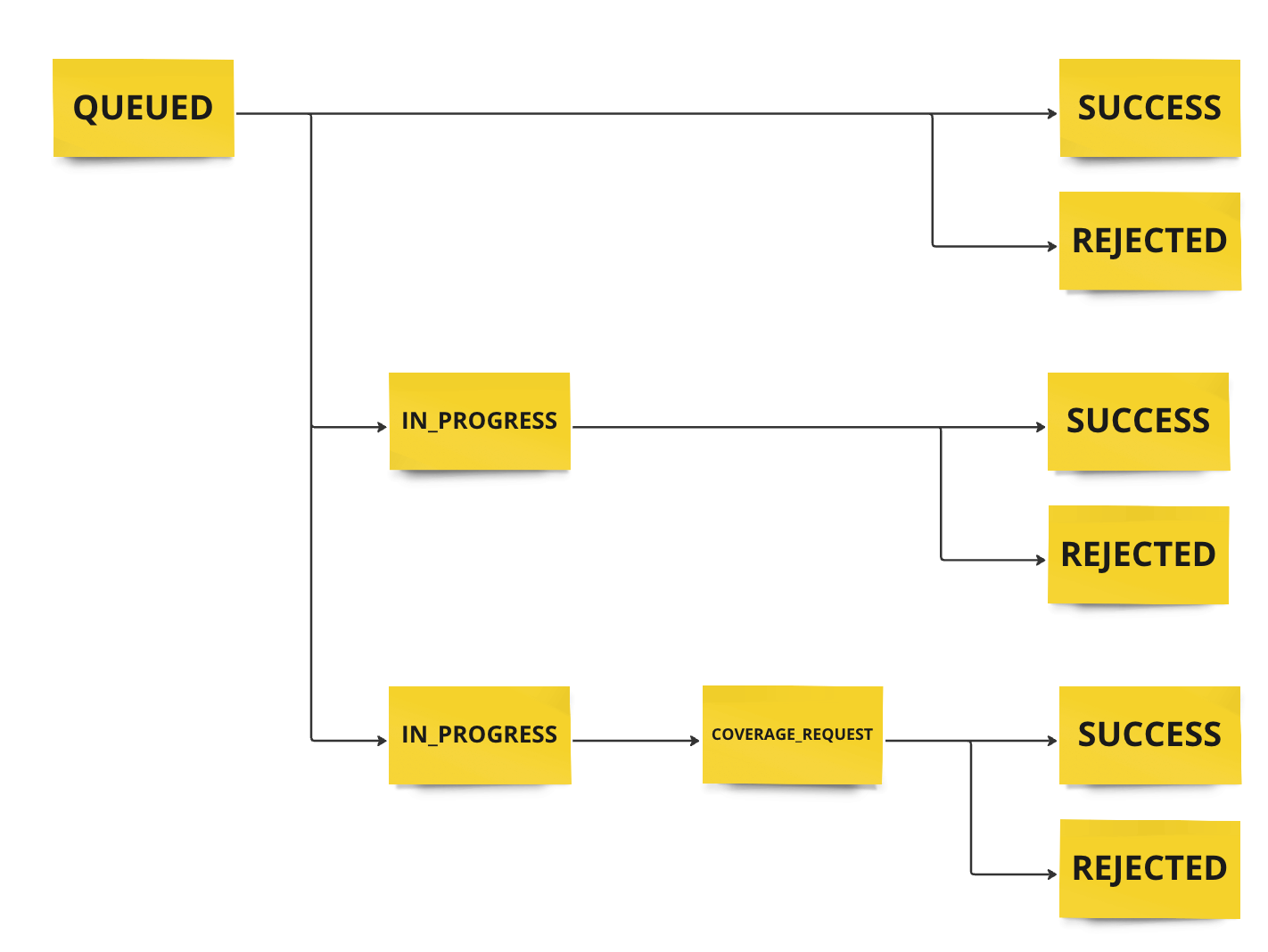

All posible status transitions

Webhooks behavior

We will continue to use the same event type STATUS_CHANGE and subject type FILE as before. More details on webhook behaviors here.

Impacted customers

🚧

Are you currently using the files endpoints and webhooks?

If you are, in order for your integration to continue to work, you will need to make a few updates to how you handle file statuses and status details.

If you need more information, please reach out to your Customer Success Manager, Account Manager or our Support team.

If you are a Console-only user when it comes to uploading files and checking their statuses, this change will not break your integration. You will start to see the new statuses on Console when we release the change.

If you do not rely on the Files Module feature for your business, you can make the updates at a time that is most convenient for you.

Required customer actions

Update how you handle API responses from the files endpoints' File.fileStatus and File.fileDetails fields to handle the new statuses and status details.


What’s Next

If you have any further questions, please reach out to your Customer Success Manager, Account Manager, or contact the Arcadia Support team at [email protected].
